Make Your First Style

To see a full production-ready example of many features (particles, animated accents, textured frames), check the built-in Vibrant Tooltips resource pack in the project repository.

If you want to work on a clean canvas without fighting against predefined styles, simply disable Vibrant Tooltips before following the steps below.

Below – a minimal 5-step guide to create a custom style that will apply only to uncommon items using the Fragmentum Layer (config folder). This example:

• creates a small custom panel (light green tint),
• creates a style that uses that panel, and
• creates a definition that applies the style to uncommon rarity items.

Quick Summary (what you’ll create)

1. tooltips/element/panel/uncommon_panel.json – custom panel (color)
2. tooltips/style/uncommon_style.json – style that references the panel
3. tooltips/definition/uncommon_definition.json – rule: apply to uncommon items

Create these files under your Minecraft config folder:

If you use a different namespace instead of example, keep paths consistent and use the same namespace in style and definition JSONs.

1. Create a Custom Panel

{
  "type": "obscure_tooltips:color_rect",
  "background_palette": {
    "top_left": "#F0001010",
    "top_right": "#F0001010",
    "bottom_left": "#F0001010",
    "bottom_right": "#F0001010"
  },
  "border_palette": {
    "top_left": "#6050FF00",
    "top_right": "#6050FF00",
    "bottom_left": "#50287F00",
    "bottom_right": "#50287F00"
  }
}

• This is a simple rectangular panel with a subtle green gradient and a soft border.
• You can tweak the hex ARGB colors (#AARRGGBB) to taste.

2. Create the Style That Uses the Panel

{
  "panel": "example:uncommon_panel",
  "effects": []
}

• panel points to the custom panel we created.
• frame, slot, and icon are not specified here, so the default built-in assets will be used automatically.
• effects must be present even if empty.

3. Create the Definition That Applies the Style to Uncommon Items

{
  "priority": 50,
  "style": "example:uncommon_style",
  "filter": {
    "type": "obscure_tooltips:rarity",
    "rarity": "uncommon"
  }
}

• priority: higher numbers override lower numbers in the merging system. 50 is arbitrary – pick a number that makes sense in your setup.
• style points to the custom style we created.
• filter uses the rarity filter to target uncommon items only.

4. Save Files and Reload In-Game

1. Save the three JSON files.
2. In Minecraft, press F3 + T to reload resources (or restart the game).

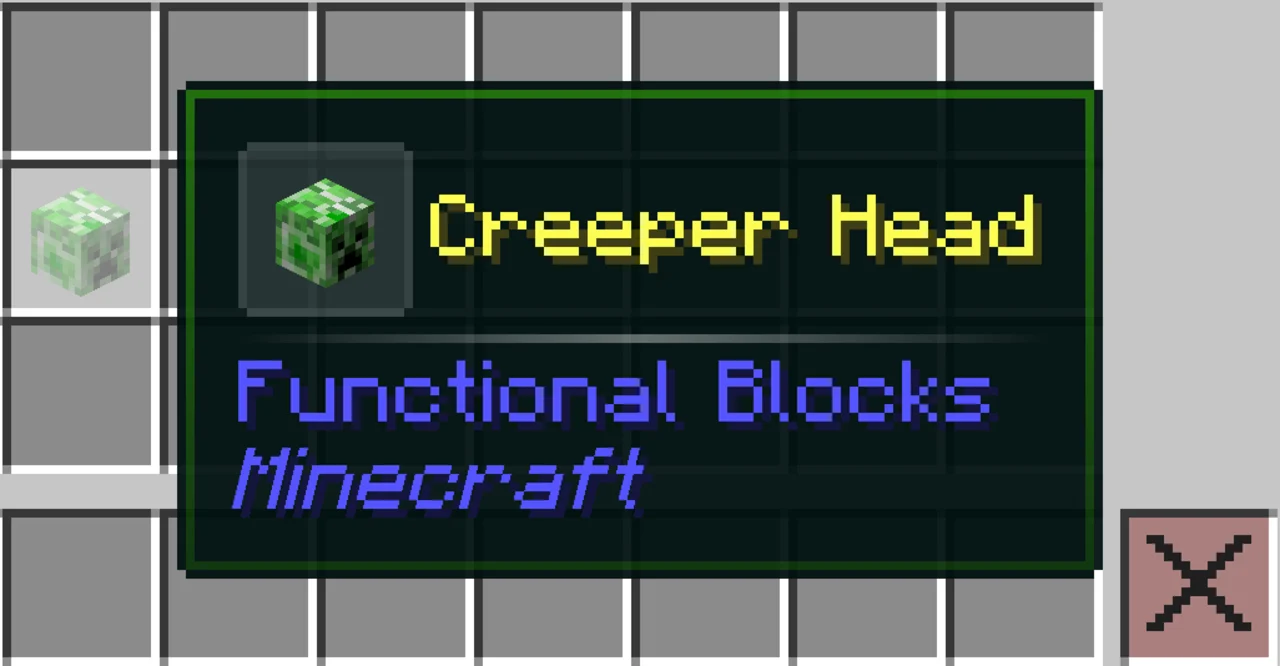

3. Hover an item with uncommon rarity – your new style should appear.

If nothing changes, check the troubleshooting tips below.

5. Troubleshooting & Tips

• Paths & Namespace – Make sure the JSON style/panel references match the filenames and the namespace (example:uncommon_panel matches .../example/tooltips/element/panel/uncommon_panel.json).
• Recommended Editor – Using an editor with JSON syntax highlighting and auto-formatting makes editing much easier. Visual Studio Code is a popular free option and works especially well for resource packs and mod assets.
• Check JSON Syntax Carefully – JSON does not allow trailing commas. A single missing bracket or extra comma can prevent the resource from loading.
• Effects Array – effects must always exist in a style file (even if empty []). Missing it can cause the style to be ignored.
• Layer Precedence — If another definition with higher priority matches the same items, your style might be partially or fully overridden. Increase priority or adjust filters if necessary.
